LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling

  • LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling
Place of Origin Anhui, China
Фирменное наименование LYNCCN
Сертификация ISO9001
Minimum Order Quantity 3 Piece
Цена Подлежит обсуждению
Packaging Details Wooden box
Delivery Time 30 days
Payment Terms T/T
Supply Ability 500 Piece/Pieces per Month

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Product Category Press Brake Single V Die Product Name LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling
Brand LYNCCN Height 120mm
Width 35mm Angle 80°
V Opening 24mm Material 42CrMo
Hardness HRC48-52 Packing Wooden Box
Выделить

Hydraulic Press Brake Tooling

,

Press Brake Tooling Hydraulic

,

Single V Die
Оставьте сообщение
Характер продукции

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.


This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

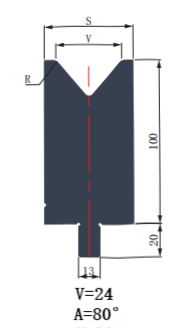

Technical Parameters:


Product Type LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling
Length 550mm/500mm
Brand LYNCCN
Width 35mm
Height 120mm
Angle 80°
V Opening 24mm
Hardness HRC48-52
Heat Treatment Induction Hardening
Material 42CrMo
Max. Load 100T/M
Packing Wooden Box



Standard Segmentation:



500mmLYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 0

515mm

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 1

550mm Segmentation

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 2



Applications:


Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.


LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 3

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 4

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 5

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 6

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 7

LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling 8
